LINE DRAWINGS
Gradus Huddle pod
dimensions
Download Framery Gradus Huddle technical and glass dimensions
and see other detailed dimensions below.
GRADUS HUDDLE
Main view
GRADUS HUDDLE
Front view
GRADUS HUDDLE
Top view
GRADUS HUDDLE
Power cord specifications
- Total power cord length: 23 ft (7 m)
- When installed from the roof: 12.3 ft (3.75 m)
- When installed from the base: 19.4 ft (5.9 m)
GRADUS HUDDLE
Operating space
Daily pod operation requires some space around the pod. The total space needed from back to front (pod depth + doorway) is 89 in / 226 cm. The minimum room height requirement is 93.7 in / 238 cm, which allows for 2 in / 5.1 cm of clearance above the pod.
No additional clearance needed if seismically anchored or sprinklered.
GRADUS HUDDLE
Installation space
Installation requires 19.7 in / 50 cm of free space around the pod. Room height requirement 98.4 in / 250 cm.
Framery Gradus Huddle pods can be placed side by side.
Framery smart pods
Find the dimensions of our other products below
Gradus Focus

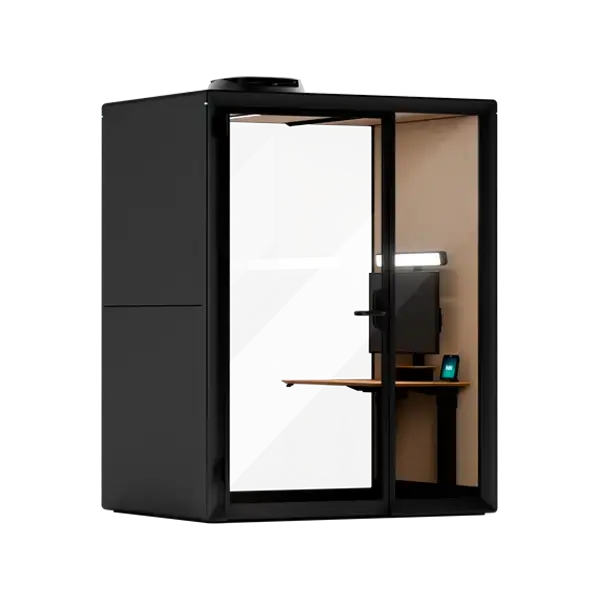

Gradus Work
