LINE DRAWINGS
Gradus Work pod
dimensions
Find Framery Gradus Work pods
detailed dimensions below.
GRADUS WORK
Main view
*Chair not included, shown for scale only.
GRADUS WORK
Front view
*Chair not included, shown for scale only.
GRADUS WORK
Top view
*Chair not included, shown for scale only.
GRADUS WORK
Power cord specifications
- Total power cord length: 23 ft (7 m)
- When installed from the roof: 12.3 ft (3.75 m)
- When installed from the base: 19.4 ft (5.9 m)
GRADUS WORK
Operating space
Daily pod operation requires some space around the pod. The total space needed from back to front (pod depth + doorway) is 89 in / 226 cm. The minimum room height requirement is 93.7 in / 238 cm, which allows for 2 in / 5.1 cm of clearance above the pod.
No additional clearance needed if seismically anchored or sprinklered.
*Chair not included, shown for scale only.
GRADUS WORK
Installation space
Installation requires 19.7 in / 50 cm of free space around the pod. Room height requirement 98.4 in / 250 cm.
Framery Gradus Work pods can be placed next to each other.
*Chair not included, shown for scale only.
Framery smart pods
Find the dimensions of our other products below
Gradus Focus

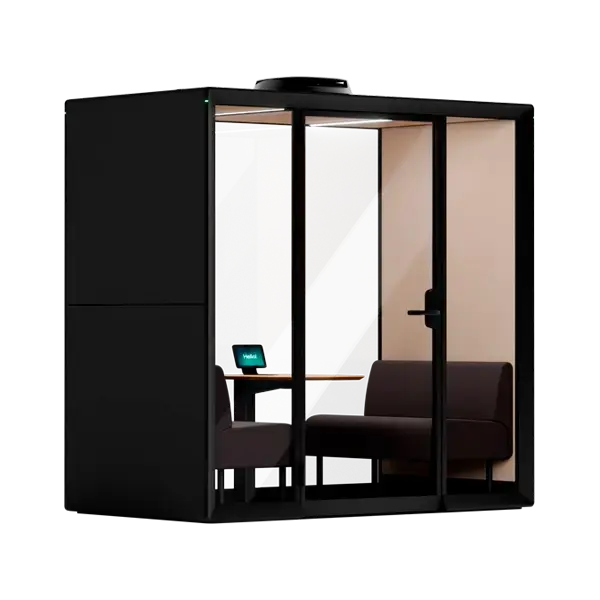

Gradus Huddle
