Gradus Work
Tech Specs
See below the technical specifications of Gradus Work
smart and soundproof work pod.

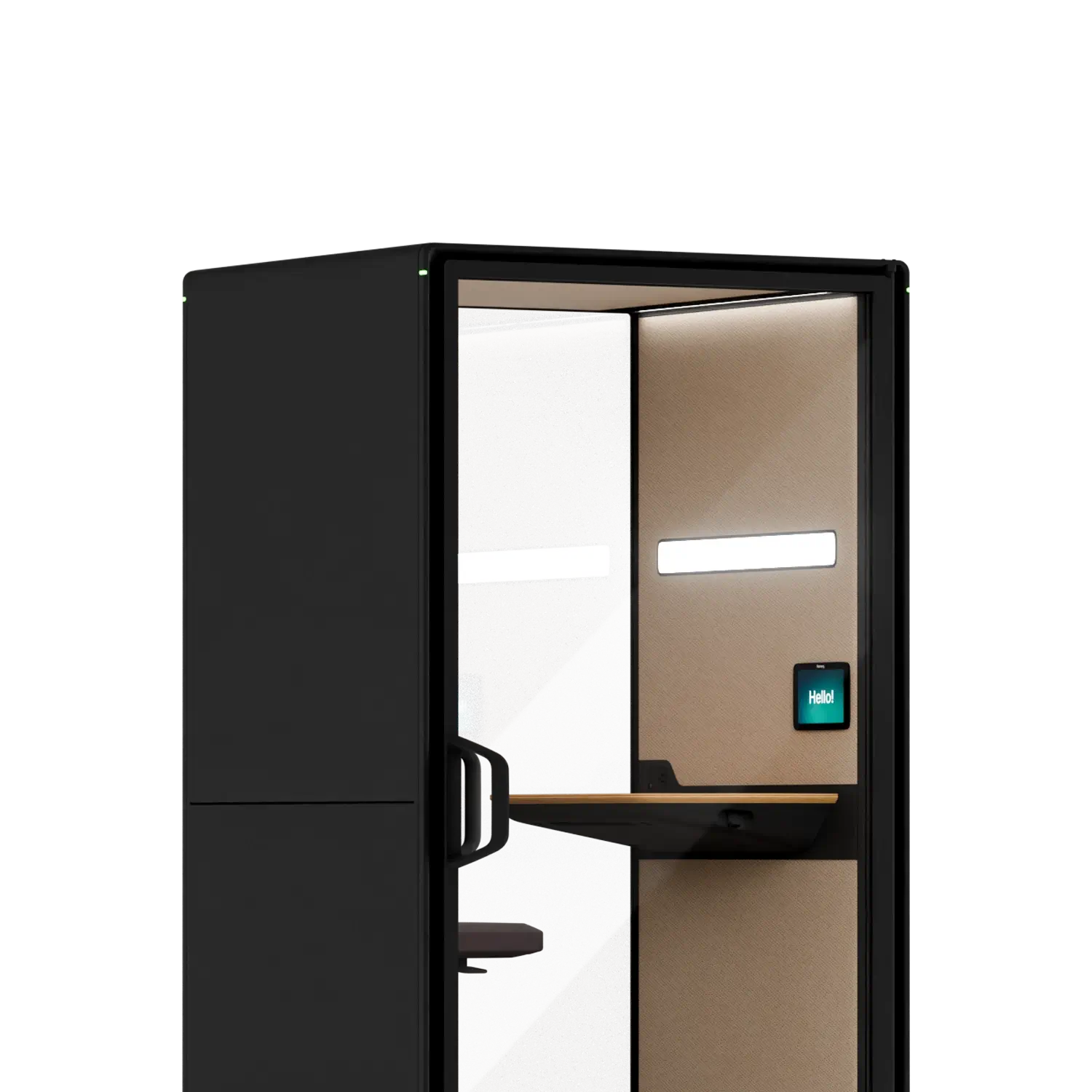

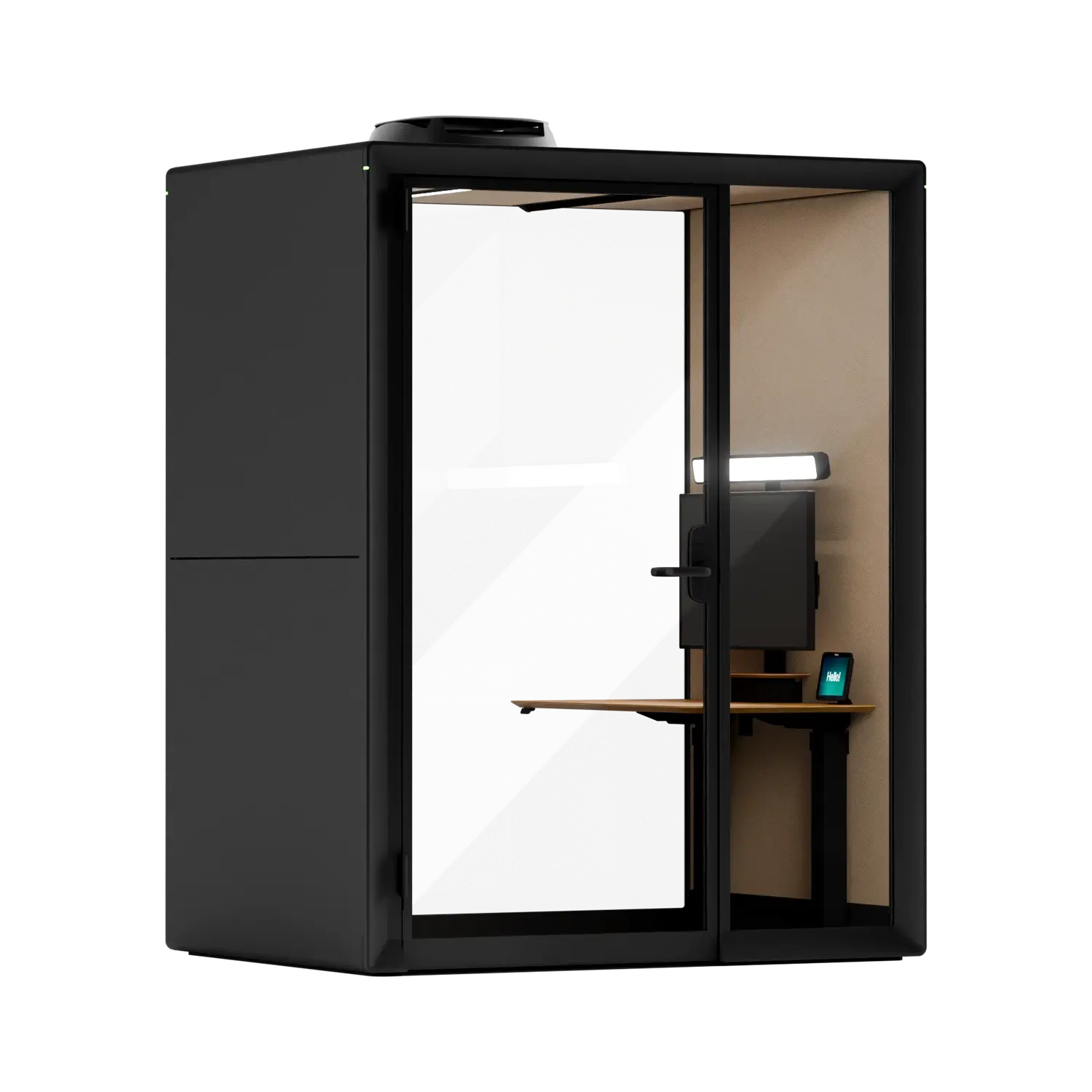

The smart and soundproof work pod for one person
The smart and soundproof work pod for one person, designed for focus and hybrid work. It is the best-equipped private workstation in the professional landscape, featuring a full-sized, height-adjustable desk and the three pillars of a high-performance workspace: Class A soundproofing, adaptive ventilation, and versatile lighting.
Layout options
BASE
The Gradus Work Base comes without a chair. The table is fixed height, but can be upgraded to a height-adjustable.
ESSENTIALS
The Gradus Work Essentials comes without a chair. A height-adjustable table is included.
ESSENTIALS+
The Gradus Work Essentials+ comes without a chair. Height-adjustable table is included, and a Framery Room Display outside the pod with a full tablet kit.
Soundproofing
CLASS A 30 DS,A (dB) reduction
Speech level reduction DS,A (dB) is measured using ISO 23351-1. Pod can be placed next to workspaces without compromising privacy.
Ventilation
MAXIMUM AIRFLOW
112 CFM, 191 m3/h (53 l/s)
TYPICAL AIRFLOW
87 CFM, 148 m3/h (41 l/s) when in use. After use, the pod refreshes itself with a higher ventilation speed.
STANDBY MODE
71 CFM, 121 m3/h (33 l/s)
Lighting
DOUBLE CEILING LIGHT
Color temperature 4000 K, illuminance up to 300 lux on the table top.
VIDEO LIGHT
Color temperature 4000 K, illuminance up to 500 lux on the user’s face.
PRE-SET LIGHTING MODES
Standard mode & Video call mode. Lighting can also be adjusted manually.
Dimensions
EXTERIOR
With air filter housing 91.8 x 67.9 x 49.7 in (233.1 x 172.4 x 126.1 cm) (h,w,d).
WEIGHT
881.8 lb / 400 kg
DOOR SWING ANGLE
180°
Exterior
EXTERIOR PANELS
Powder-coated matt steel panels.
GLASS
Sound control laminated glass (0.16 + 0.16 in / 4 + 4 mm).
Interior
INTERIOR PANELS
PET sheets laminated with recycled polyester fabric.
UPHOLSTERY FABRIC
Gabriel Tonal.
CARPET
Antistatic and stain-resistant low-loop pile carpet.
TABLE
The tabletop is birch plywood laminated with white, black anti-fingerprint, oak or walnut veneer.
Furniture dimensions
TABLE
42.9 × 22.8 in / 109 × 58 cm (w, d).
Fixed height from floor: 27.6 in / 70 cm for fixed desk and 26.8-46.5 in / 68-118 cm for height-adjustable desk.
Optional accessories
DUAL-MONITOR STAND
Includes single monitor support (up to 40″) by default. Optional dual-monitor upgrade available (supports two 24″ screens in landscape or portrait orientation).
WALL PANELS
Make your Gradus pods blend in, or stand out, with our interchangeable wall panels. Choose between wooden, fabric, or custom fabric.
PRIVACY FILM
Add Framery’s privacy film to the glass surfaces of the pod for visual privacy. Requires professional installers.
FRAMERY ROOM DISPLAY KIT
Add Framery Room Display outside your smart pod with our full kit: exterior tablet mount, tablet holder, and tablet. Same as Smart Pod Kit in Smart Office portfolio.
Power
POWER CONSUMPTION
Default settings 29 W.
Highest settings 64 W.
Standby mode 13 W.
INPUT
120 VAC, 10 A*, 60 Hz.
*(NEMA 5-15P 3-prong plug)
OUTPUT AC (POWER OUTLET)
120 VAC, 8 A, 60 Hz.
OUTPUT USB-C PD CHARGE PORT
65 W.
OUTLETS
2 × on-table power outlets, 2 × under-table power outlets
Optional: 2 × USB-C PD charge ports (65 W), 1-2 × LAN port (with cable).
